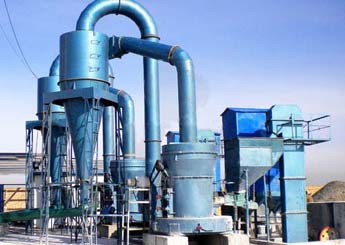

CLIRIK Raymond Roller mill is widely used in barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, swelling bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation materials, Mohs hardness of not greater than 9.3, humidity less than 6% of the non-explosive minerals, chemicals, construction and other industries more than 280 kinds of materials high fine powder generation and processing, R-type Raymond mill finished particle size range of 80-325 mesh of arbitrary regulation, part of the material up to 600 mesh.


1.While Working, The Operating Personnel Must Have A Certain Skill Level And Knowledge, We Can Carry Out The Operation.

2.The machine must be running in good lubrication condition, otherwise it will damage the bearing, shorten the service life. The specific time and gas filling grease lubrication system table varieties.

3.Prohibited the piece of metal into the raymmond roller mill, find out immediately stop, otherwise it will damage the grinding roller and grinding ring.

4.Feeding should be uniform, too much will duct blockage, lower yield, easy to burn out the motor; too little will also reduce yield.

5.Volume adjustment: located in the fan inlet pipe on the air volume control valve, generally to the maximum position, according to fineness and yield requirements appropriate adjustment.

6.Fineness regulation: according to the size of the material, different hardness, moisture content, specific gravity, processing thickness is different, can be adjusted at the top of the analyzer, high speed, high fineness, low speed, low fineness. Improve the fineness, the yield will be reduced accordingly, if not up to the requirements should be debugging fan air volume and speed, the user can flexibly mastering.

7.When stop, first stop feeding and host continues to run, so that the residual material to grinding, about a minute later, can close the host motor and analyzer motor, stop grinding work, then stop the fan motor to purge residual powder.


If you want to know the Raymond roller mill price or have any questions about Raymond roller mill, please do not hesitate to contact us.
