Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Raymond Powder Grinder Mill,The Clirik Raymond Powder Grinder Mill have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The Raymond Powder Grinder Mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh

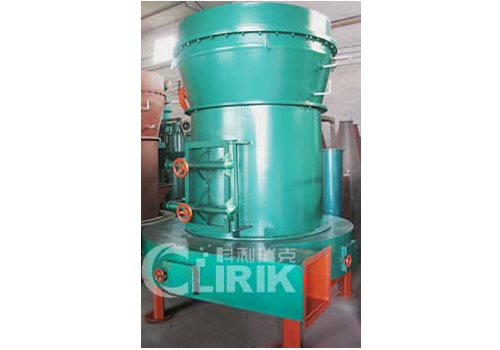

Raymond Powder Grinder Mill, also known as Raymond Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Raymond Powder Grinder Mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.
Raymond Powder Grinder Mill Features :
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Structure of Raymond Powder Grinder Mill
Raymond Powder Grinder Mill(Rammond roller mill) is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Working principle of Raymond Powder Grinder Mill
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Technical Parameter of Raymond Powder Grinder Mill
| Model | Roller | Ring |
Feeding Size (mm) |
Finished Size (mm) |
Mill System Power (KW) |
Capacity (t/h) |
Overall Dimension (mm) |
|||
|
Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter (mm) |
Height (mm) |
||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1-3 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8-20 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28 | 11550*9500*10500 |
Raymond Powder Grinder Mill Price
If you want to know the Raymond Powder Grinder Mill price or have any questions about Raymond Powder Grinder Mill, please do not hesitate to contact us.
