Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The Fly ash raymond mill,fly ash raymond mill manufacturers is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limeOre, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh
Introduction of Fly ash raymond mill,fly ash raymond mill manufacturers:
Fly ash raymond mill,fly ash raymond mill manufacturers, also known as Raymond Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Fly ash raymond mill,fly ash raymond mill manufacturers is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.
Fly ash raymond mill,fly ash raymond mill manufacturers Features :
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Structure of Fly ash raymond mill,fly ash raymond mill manufacturers

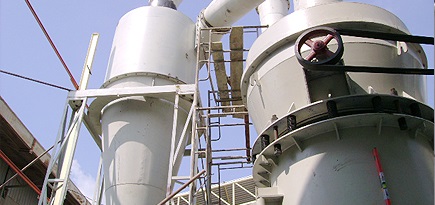

Fly ash raymond mill,fly ash raymond mill manufacturers(Rammond roller mill) is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Working principle of Fly ash raymond mill,fly ash raymond mill manufacturers
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Technical Parameter of Fly ash raymond mill,fly ash raymond mill manufacturers
| Model | Roller | Ring |
Feeding Size (mm) |
Finished Size (mm) |
Mill System Power (KW) |
Capacity (t/h) |
Overall Dimension (mm) |
|||
|
Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter (mm) |
Height (mm) |
||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1-3 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8-20 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28 | 11550*9500*10500 |
If you want to know the Fly ash raymond mill,fly ash raymond mill manufacturers price or have any questions about Fly ash raymond mill,fly ash raymond mill manufacturers, please do not hesitate to contact us.
