Clirik Machinery is a trusted and reliable brand for its high quality and good service. It specializes in producing hammer crusher which is widely used in mining, quarry, material handling. We have more than 20 years' experiences in manufacturing Hammer Crusher , hammer crusher, jaw crusher, cone crusher, impact crusher and stone crusher.
introduction of hammer crusher
The Hammer Crusher is one of the main equipment for intermediate and fine crushing the brittle materials such as limestone coal and other used materials in metallurgy, building material, chemical and water - power industry, with a feature of big crushing ratio and even product graininess.This machine can be used both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Characteristics of Hammer Crusher
1. Our Hammer Crusher has relatively simple design and simple component replacement.
2. Our Hammer Crusher has high capacity and lower power consumption.
3. Our Hammer Crusher are easy operation and low investment.

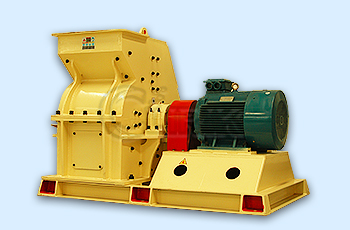

Device of Hammer Crusher : Our Hammer Crusher mainly consists of frame, rotor, support iron and grate bars.
Working Principle of Hammer Crusher
In the Hammer Crusher machine, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them. The crushed products meeting the required size can be discharged by the outlet and become the final products, while the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
Parameter of Hammer Crusher
| Model | Max feed size (mm) | Handling capacity (t/h) | Power of motor (kW) | Weight (t) | Overall dimension(mm) (lengthxwidthxheight) |
| PC400×300 | 100 | 5-10 | 11 | 0.8 | 812x982x785 |
| PC600×400 | 220 | 10-25 | 22 | 1.5 | 1055x1022x1122 |
| PC800×600 | 350 | 20-50 | 55 | 3.1 | 1360x1350x1020 |
| PC800x800 | 350 | 25-70 | 75 | 3.5 | 1440x1740x1101 |
| PC1000×800 | 400 | 20-120 | 90 | 7.8 | 2565x1720x2035 |
Hammer Crusher price:
If you want to know the Hammer Crusher price or have any questions about Hammer Crusher, please do not hesitate to contact us.
